Highly Efficient Hardware Configuration: Surging Computing Power in a Compact Size

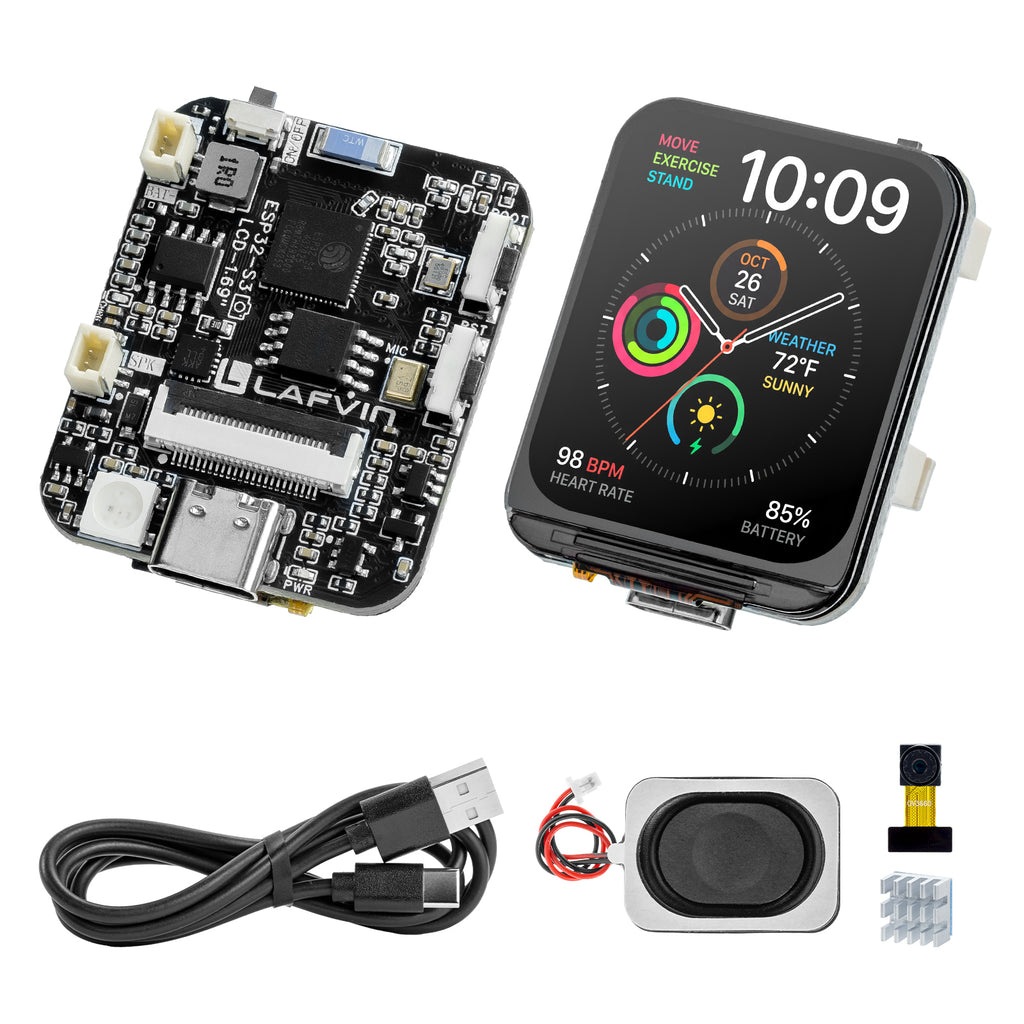

This ultra-compact 31mm * 38mm motherboard integrates the core hardware needed for developing smart terminals:
Abundant Core Computing Power: Powered by the ESP32-S3 main controller, equipped with 16MB Flash + 8MB PSRAM (N16R8) large-capacity storage, it smoothly runs complex LVGL graphical interfaces and processes AI dialogues.

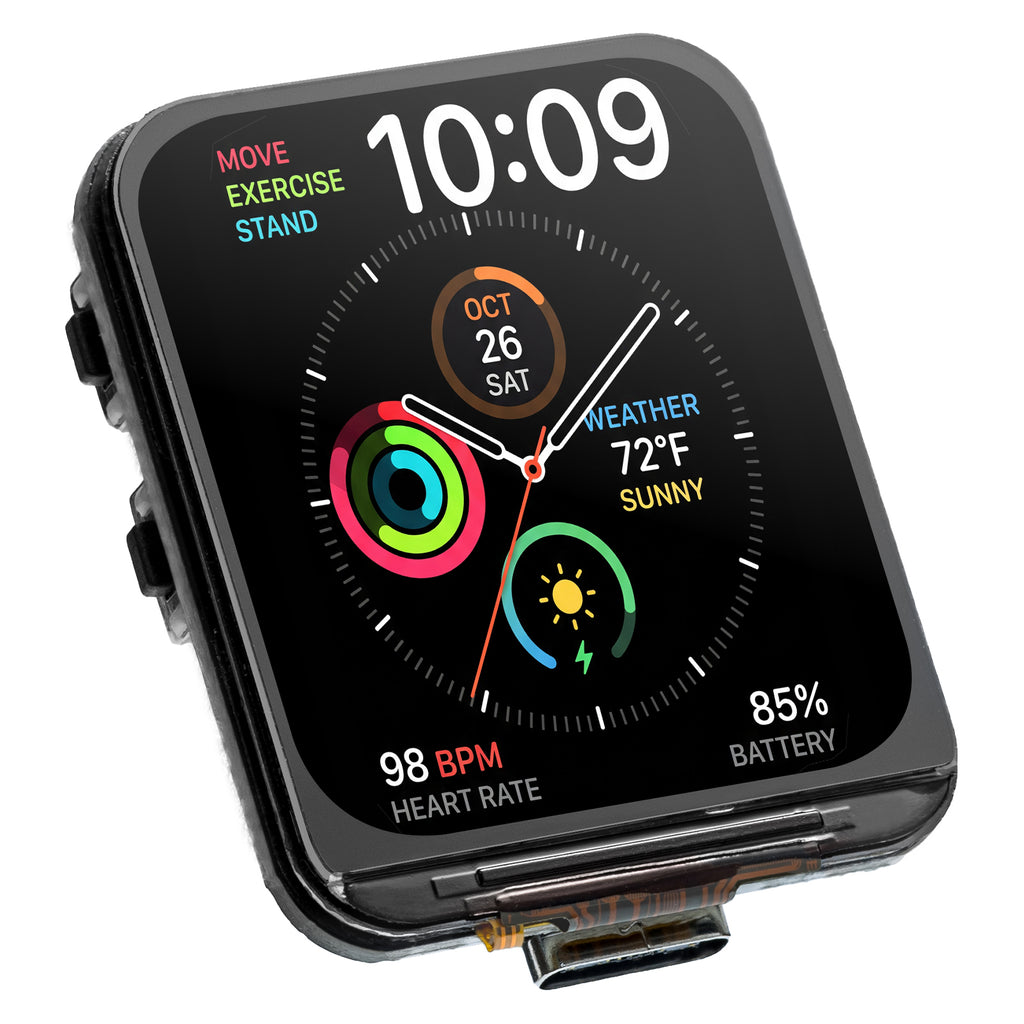

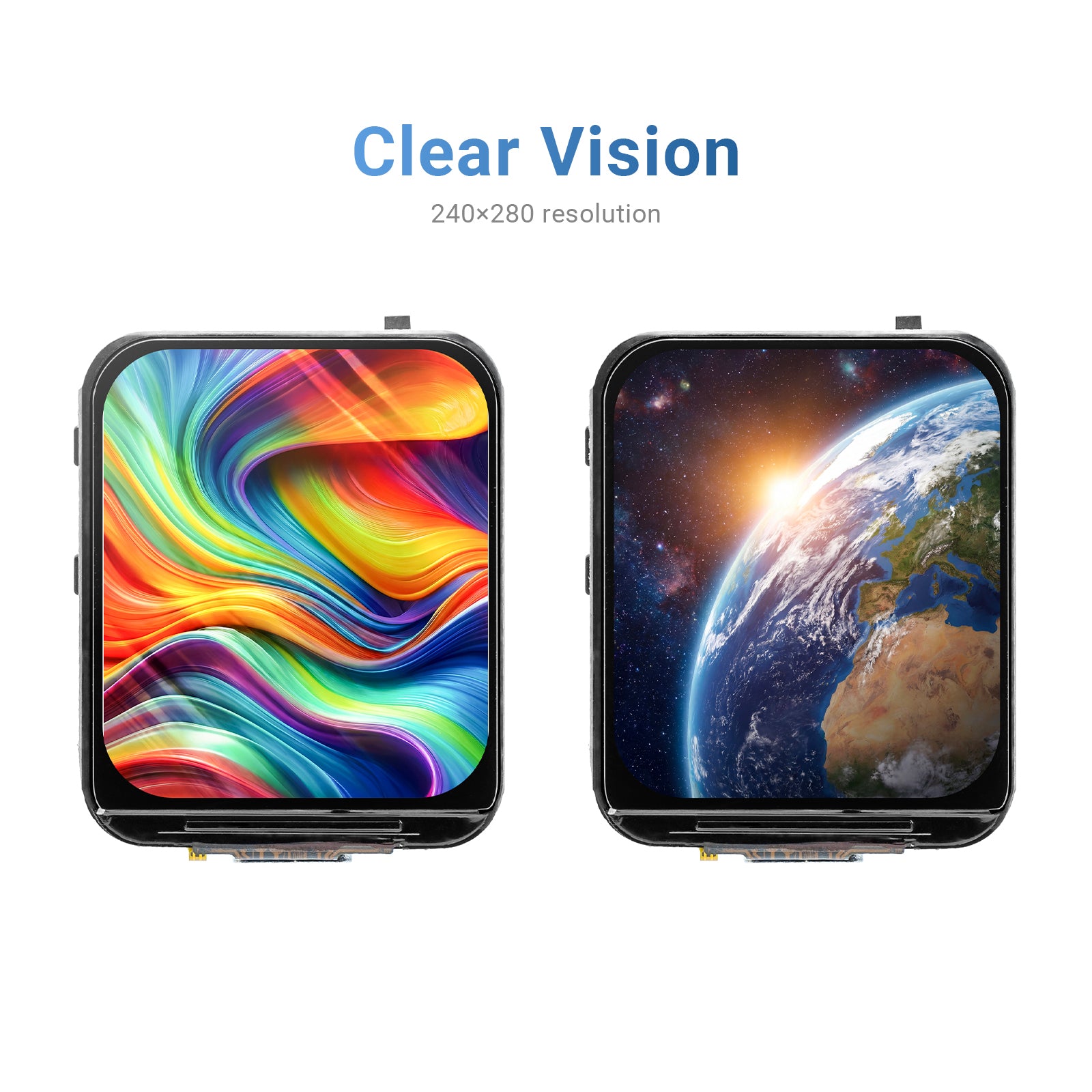

Clear Vision, Vibrant Colors: 1.69-inch LCD color screen (ST7789 driver, 240*280 resolution, non-touch), offering a delicate picture quality that handles both GIF playback and dynamic UI operation with ease.

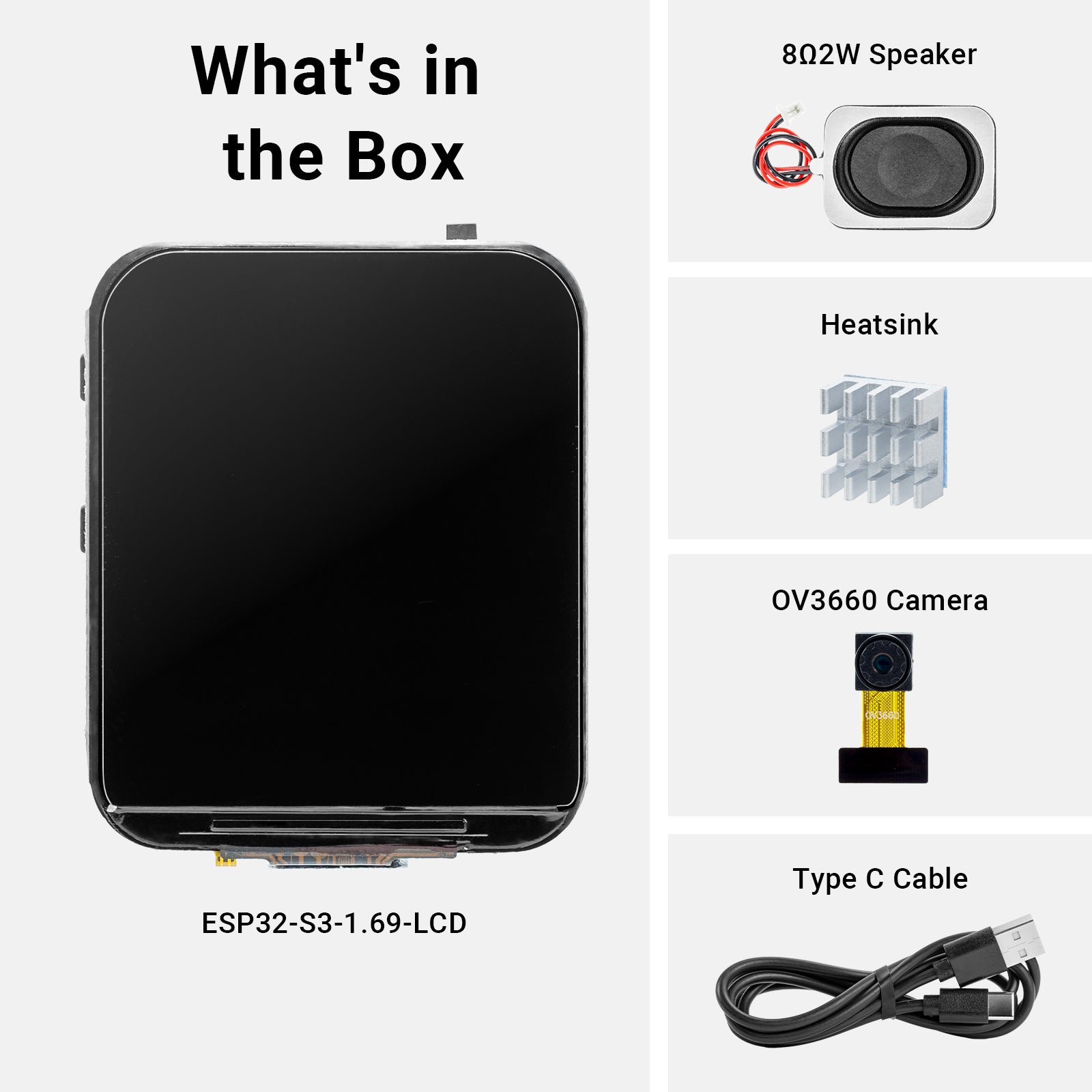

Environmental Perception "Eyes and Ears": Built-in OV3660 camera module and high-performance digital microphone, with an onboard speaker interface (custom speaker included), enabling full-link audio-visual interaction.
Designed for Portability and Geeks: Onboard Type-C interface and lithium battery charging/discharging management chip, ensuring continuous power supply even when unplugged; comes with a WS2812 programmable RGB LED for convenient status indication.
Software-Hardware Integration, Open Source Ecosystem & Visual Advancement
To accelerate your development process, we support both Arduino IDE and ESP-IDF platforms, providing accompanying source code and partial schematic references.
š Basic & UI Development (for Arduino Ecosystem):

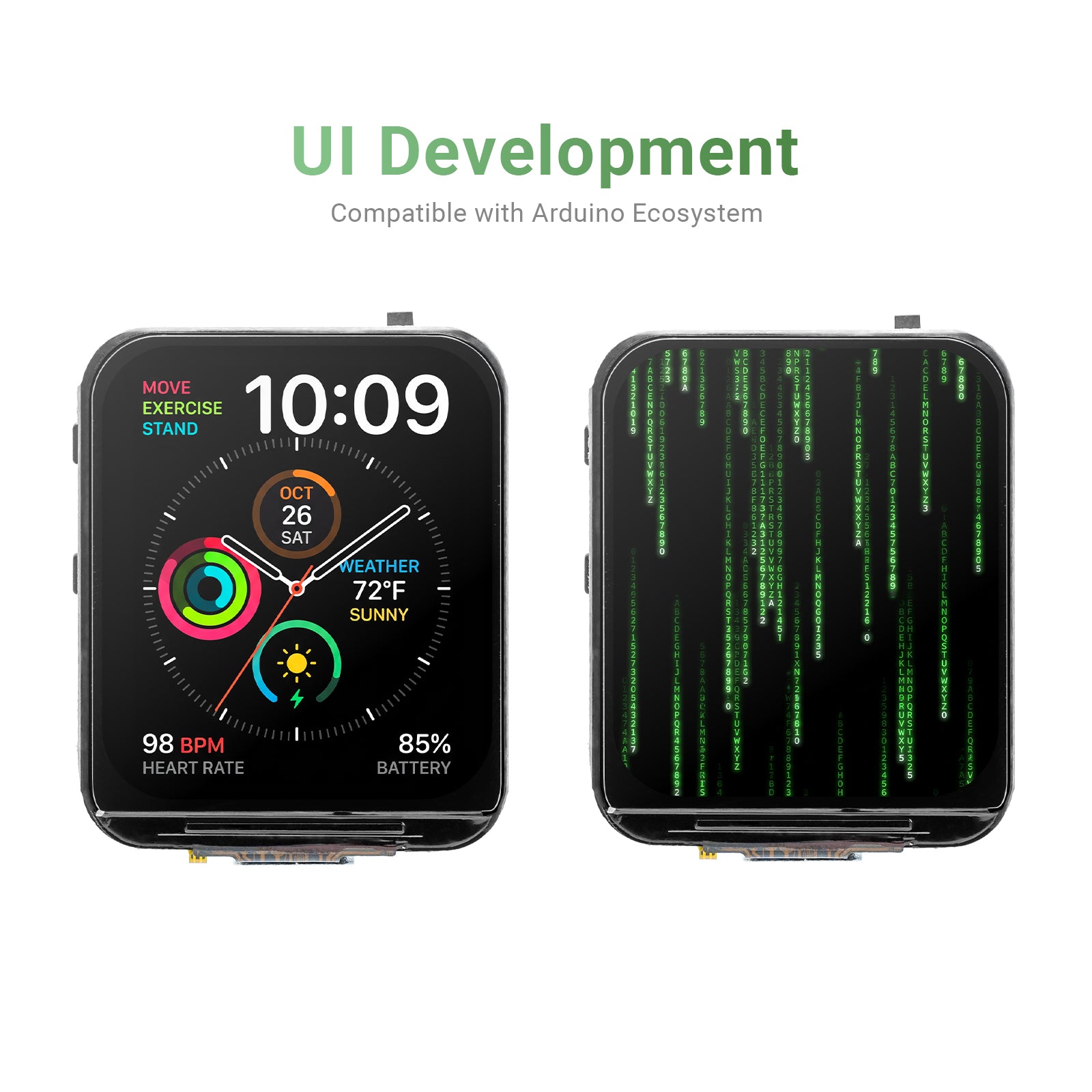

Ā Ā Visual Presentation: Includes Matrix code rain and GIF dynamic player examples.
Ā Ā Practical Network Tools: Graphical WiFi signal analyzer (GFX_WIFIAnalyzer) and network clock with NTP time synchronization.
Ā Ā LVGL UI Framework: Provides source code for LVGL clock and LED control, helping developers quickly familiarize themselves with the embedded GUI development process and build smooth visual interaction interfaces.
š§ AI Vision & Voice Advancement (ESP-IDF & Python Integration):

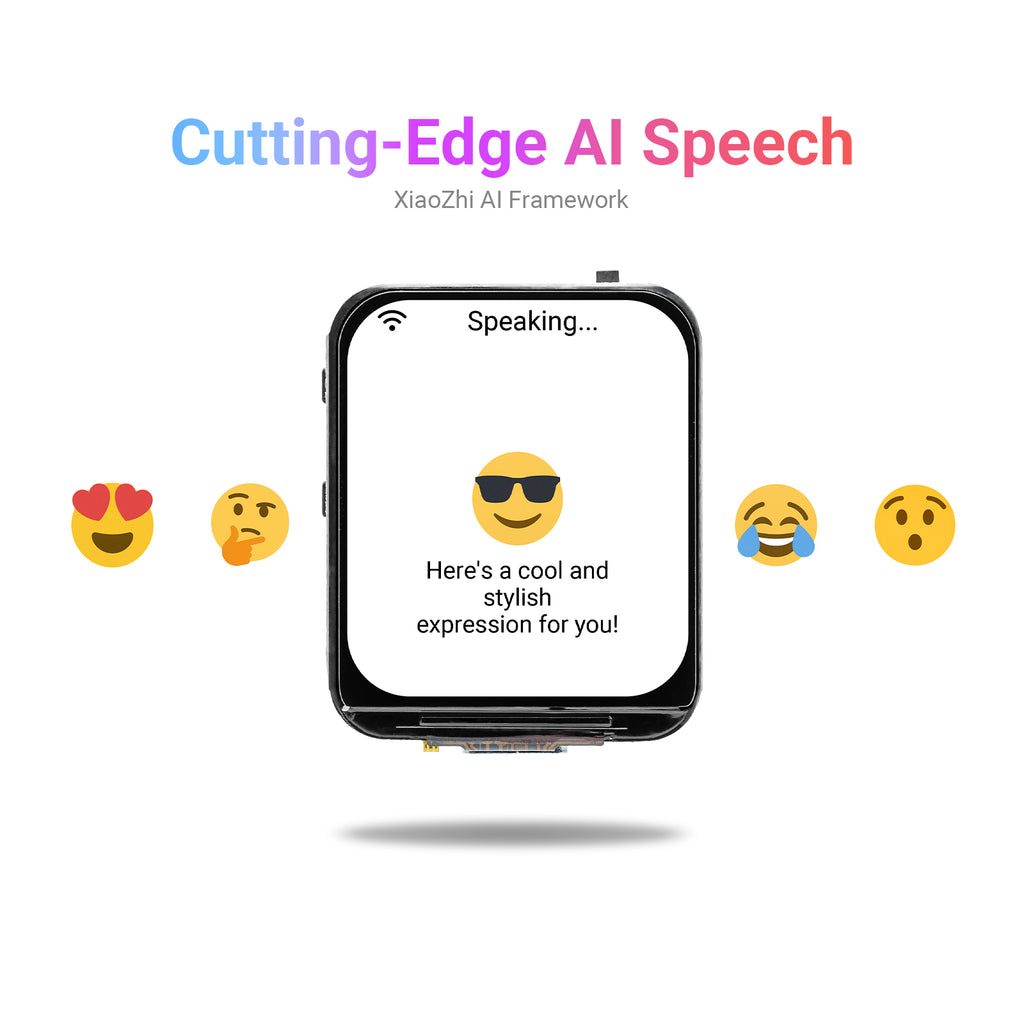

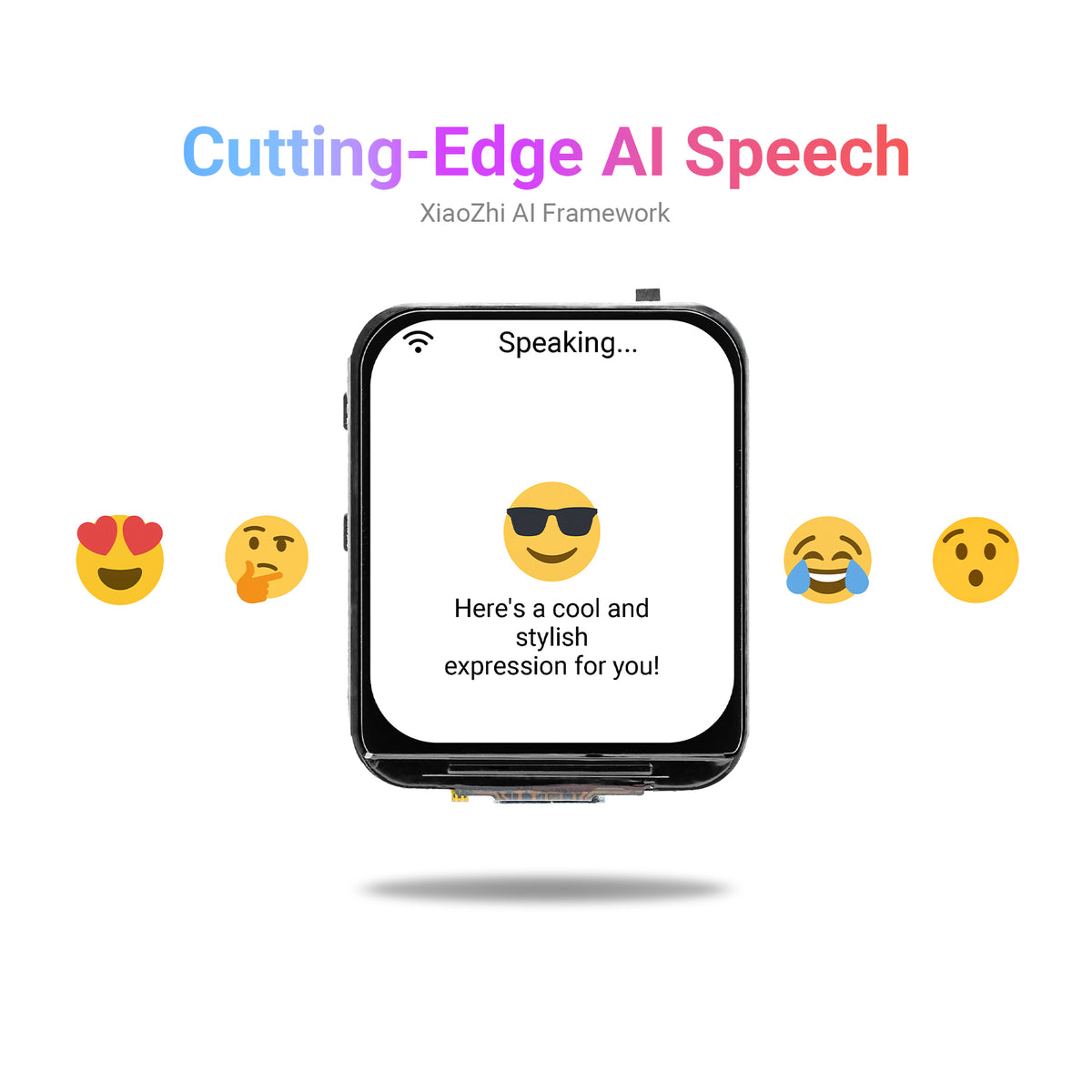

Ā Ā Cutting-Edge AI Framework Support: Natively supports the popular Xiaozhi AI framework, easily enabling photo-based dialogue, image recognition, and large language model voice Q&A.
Ā Ā UVC Camera Transformation: Flash the dedicated firmware, and the development board can be used directly as an external high-definition PC camera.

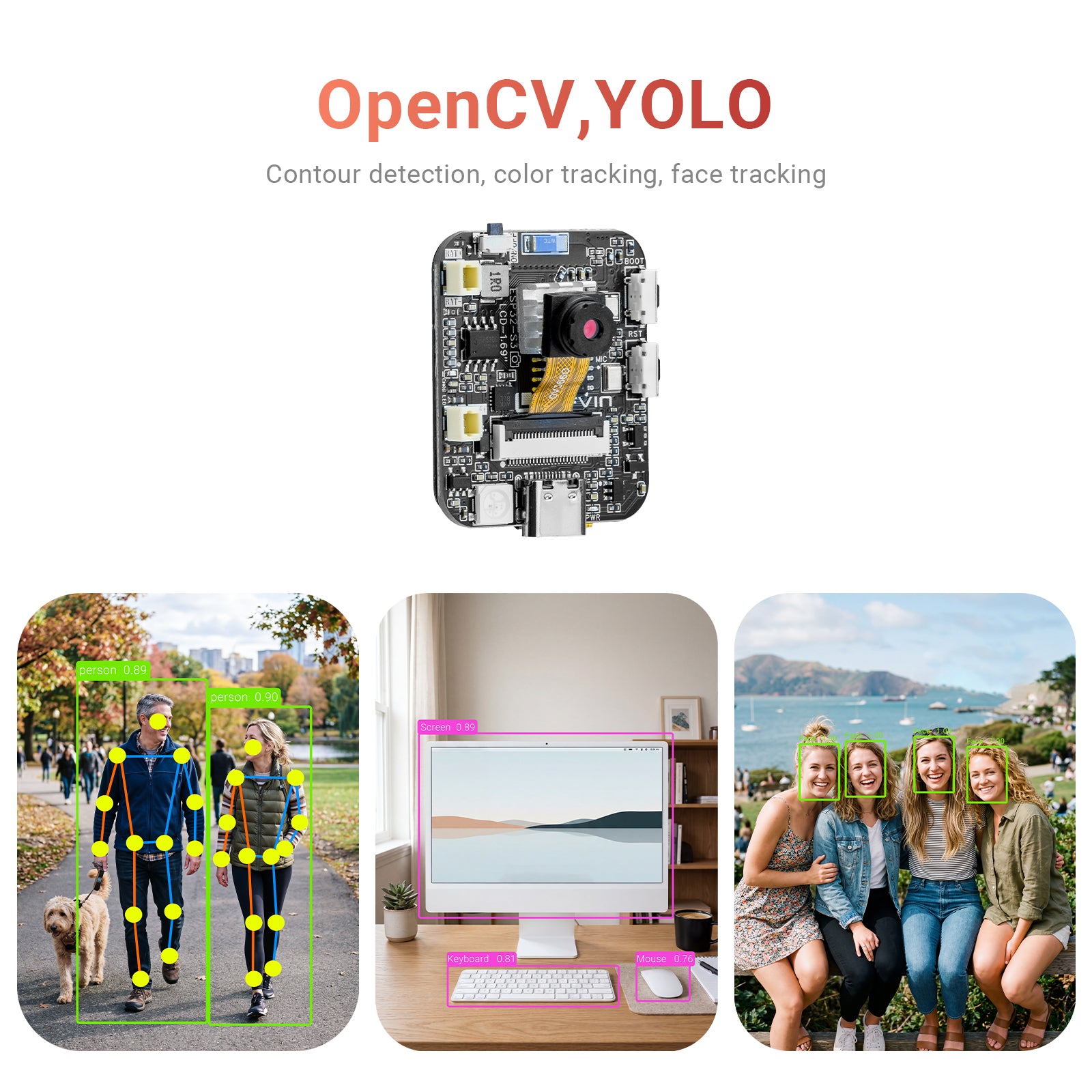

Ā Ā Machine Vision Practical Projects: Combined with PC-side Python computing power, we provide rich OpenCV and YOLO practical projects:
Ā Ā Ā Ā OpenCV: Object contour detection, color tracking calibration, and face tracking detection.
Ā Ā Ā Ā YOLO Frontier Algorithms: Real-time object recognition and classification based on YOLOv5su, and human skeletal pose estimation based on YOLOv8n-pose!
š Core Application Scenarios
Ā Ā Desktop AI Voice Assistant: Combine the microphone, speaker, and Xiaozhi AI framework to create a desktop large-model interactive terminal that can see, hear, and chat with you.
Ā Ā Smart Device Information Dashboard: Utilize the large-capacity storage and high-definition screen to quickly validate information display panels or non-touch UI interaction logic for smart homes.
Ā Ā Machine Vision Verification Node: Act as a hardware-end acquisition and verification node for computer vision (CV). Combined with PC computing power, it enables project implementations ranging from color recognition to YOLO pose estimation.
Ā Ā Geek Desktop Ornament / Portable Tool: A portable WiFi signal analyzer, or an exclusive player on your desk displaying dynamic GIFs.
š Comprehensive Technical Support for Smooth Creative Implementation
Ā Ā Instant Experience: Provides a dedicated online flashing website. No need to configure complex environments; just click on the webpage to flash and experience AI functions with one click.

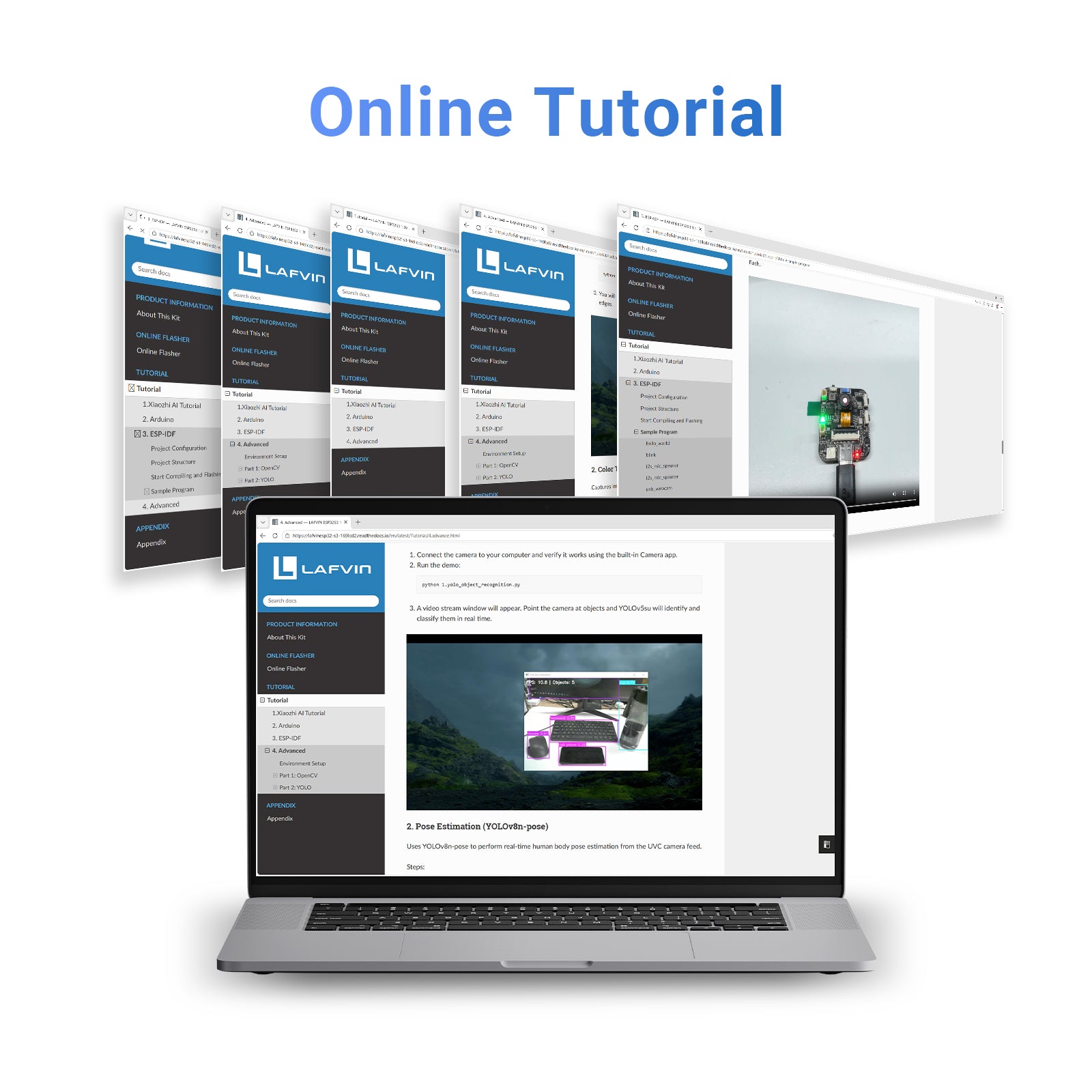

Ā Ā Structured Documentation: Relying on the ReadTheDocs online documentation center, we offer a quick start and advanced guide rich in text and images.
Ā Ā Fully Open Source: All code and advanced examples are fully open-sourced on GitHub, along with partial hardware schematic references.
Ā Ā Worry-Free Support: Provides free email technical support to help clear away any bugs on your development path.
