Description
Introduction:

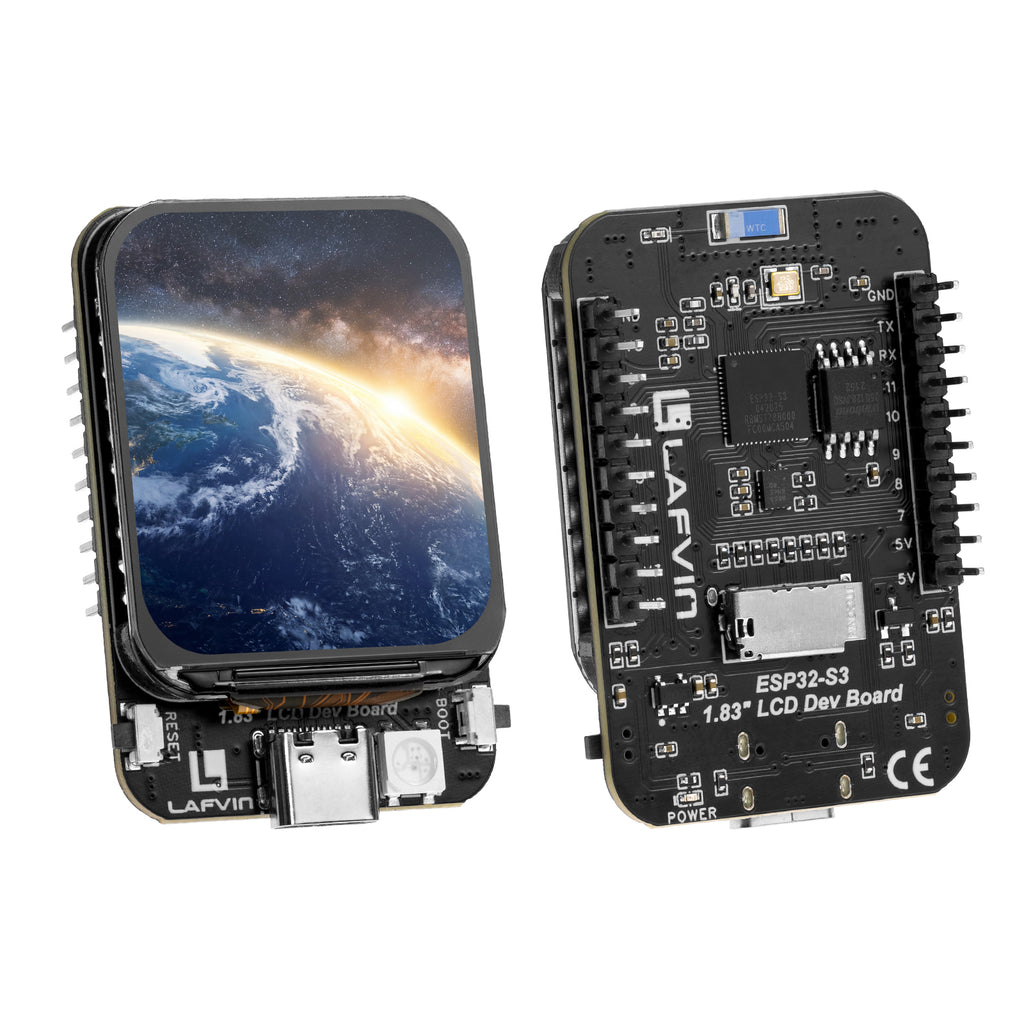

This is an ESP32-S3 color-display development board that combines high performance, rich peripherals, and ease of development. It is designed for IoT, smart hardware, embedded UI, and maker projects.

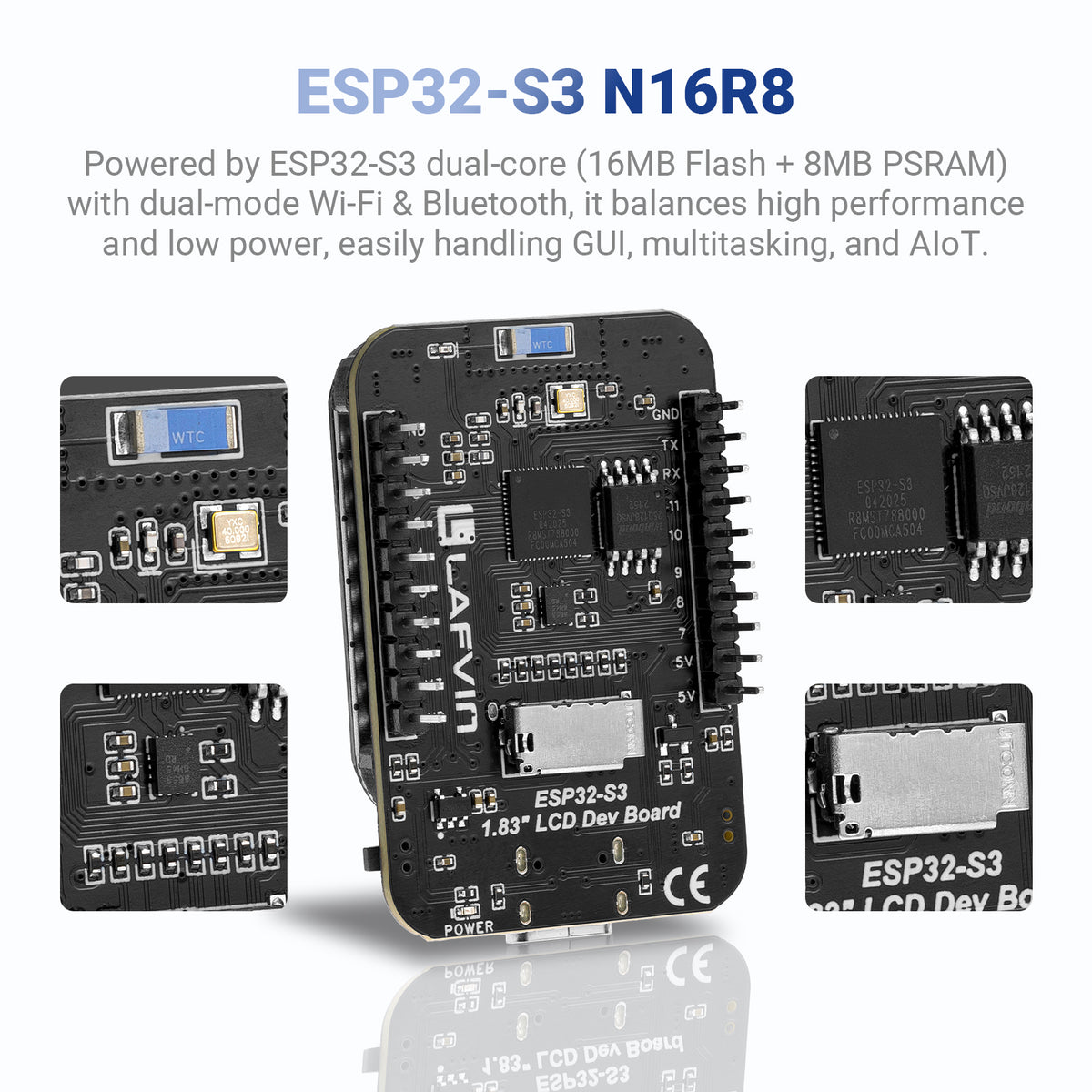

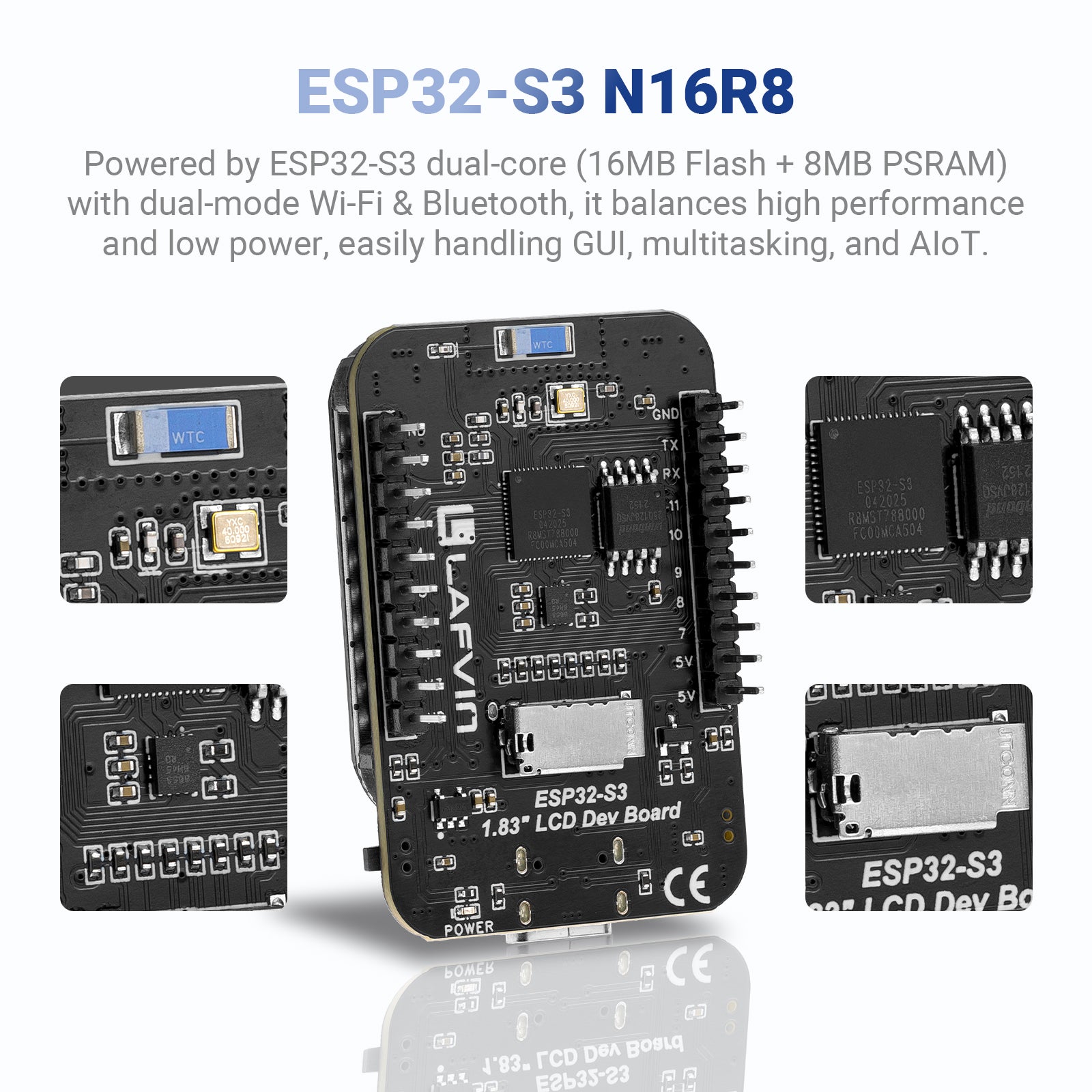

The board is powered by the high-performance ESP32-S3 N16R8 SoC, featuring 16MB of Flash and 8MB of PSRAM. This high-performance, low-power Wi-Fi + Bluetooth dual-mode MCU module utilizes an Xtensa® 32-bit LX7 dual-core processor, easily handling requirements such as graphical user interface (GUI) display, multitasking, wireless communication, and AIoT application development.

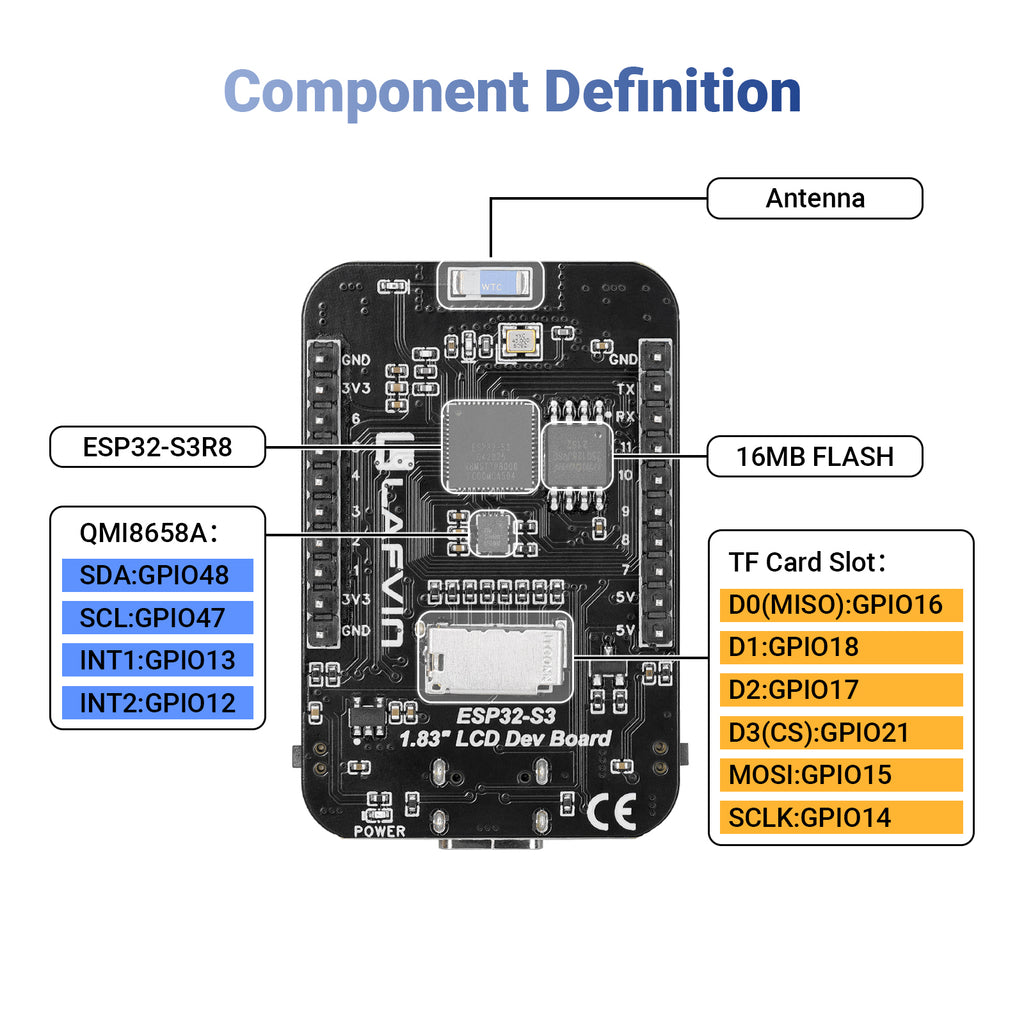

It features an onboard 1.83-inch TFT LCD color display that delivers crisp, detailed visuals suitable for various applications. The board also integrates a QMI8658A 6-axis sensor, enabling functions like attitude detection, motion recognition, and orientation sensing, thereby opening up possibilities for projects involving gesture interaction, robotics, and sports equipment.
Additionally, a built-in TF card slot facilitates data storage, image resource loading, and multimedia application development, significantly expanding the project's functionality.
To balance development flexibility with prototyping efficiency, all unused GPIO pins are broken out via pin headers. The design uses standard spacing that perfectly fits breadboards, allowing for direct insertion without the need for adapters, which greatly enhances the experimentation and development experience.
Product Features:
Equipped with the ESP32-S3 N16R8 high-performance dual-core processor; includes onboard 16MB Flash and 8MB PSRAM.
Supports Wi-Fi and Bluetooth wireless communication.

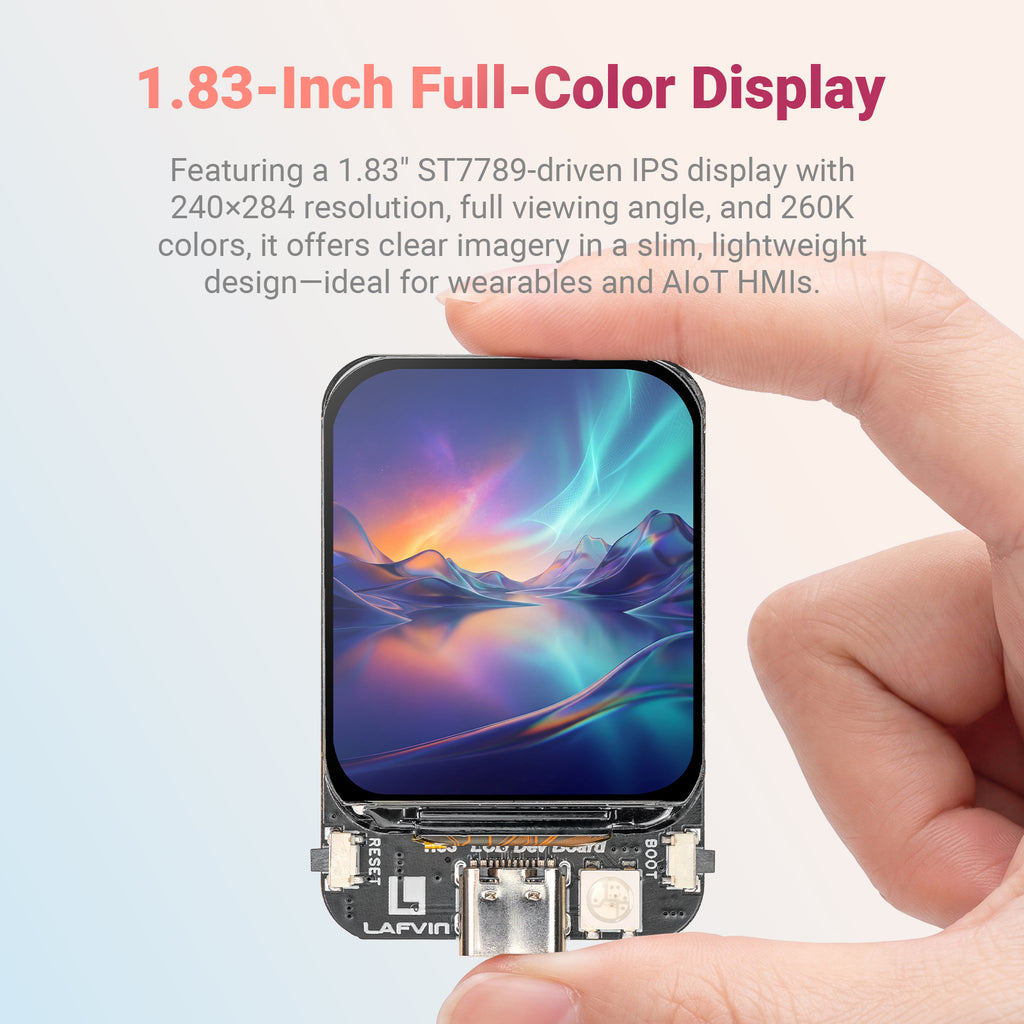

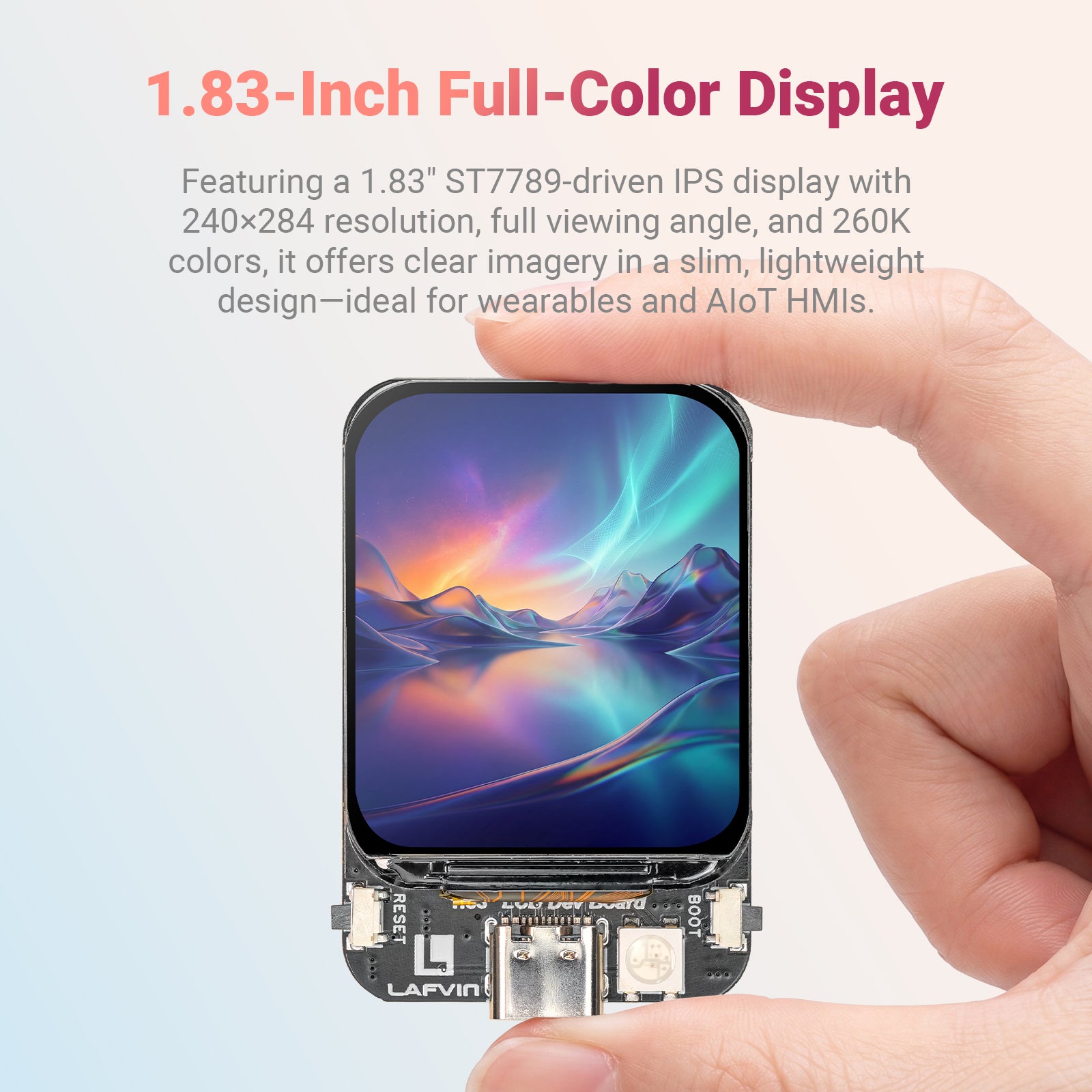

Integrates a 1.83-inch TFT LCD color display.

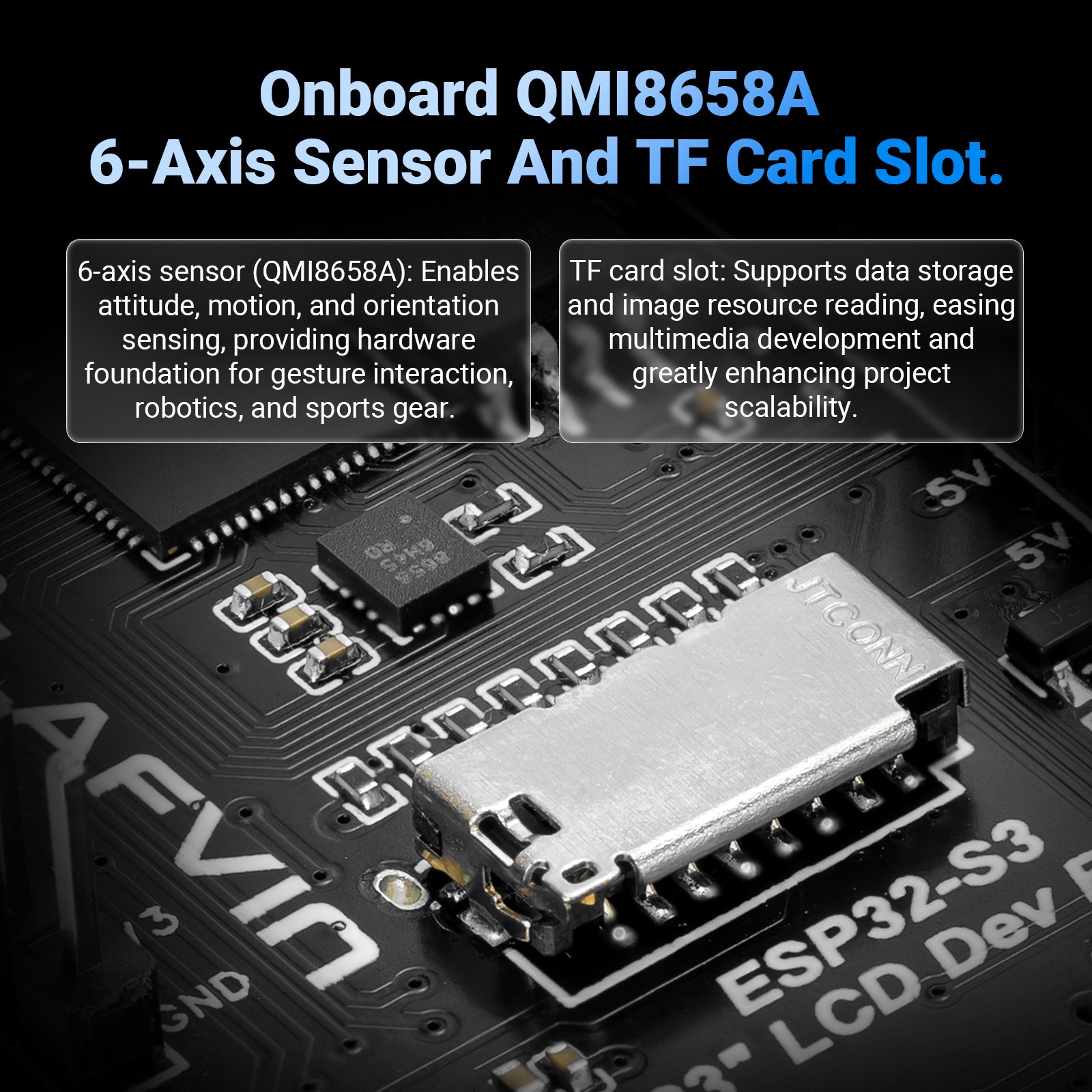

Built-in QMI8658A 6-axis gyroscope and accelerometer sensor.
Onboard TF card slot for external storage expansion.

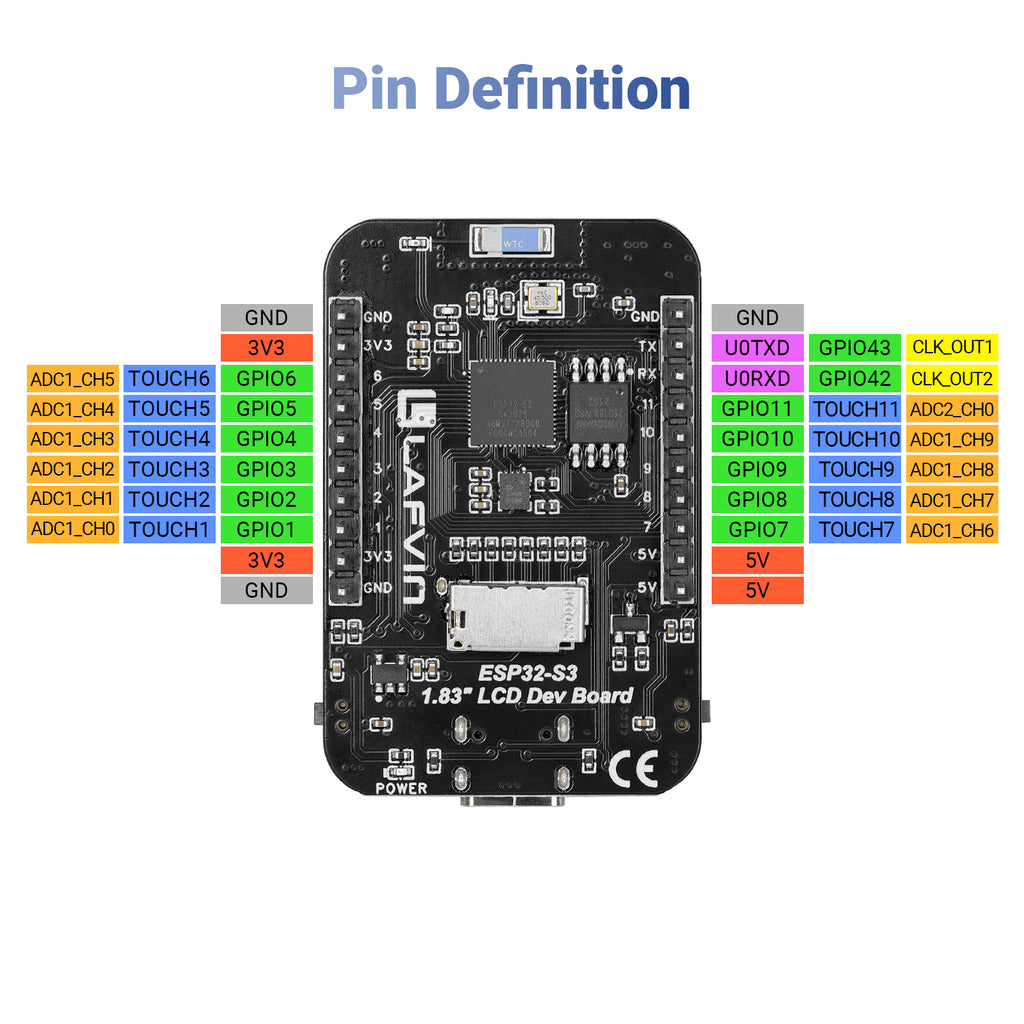

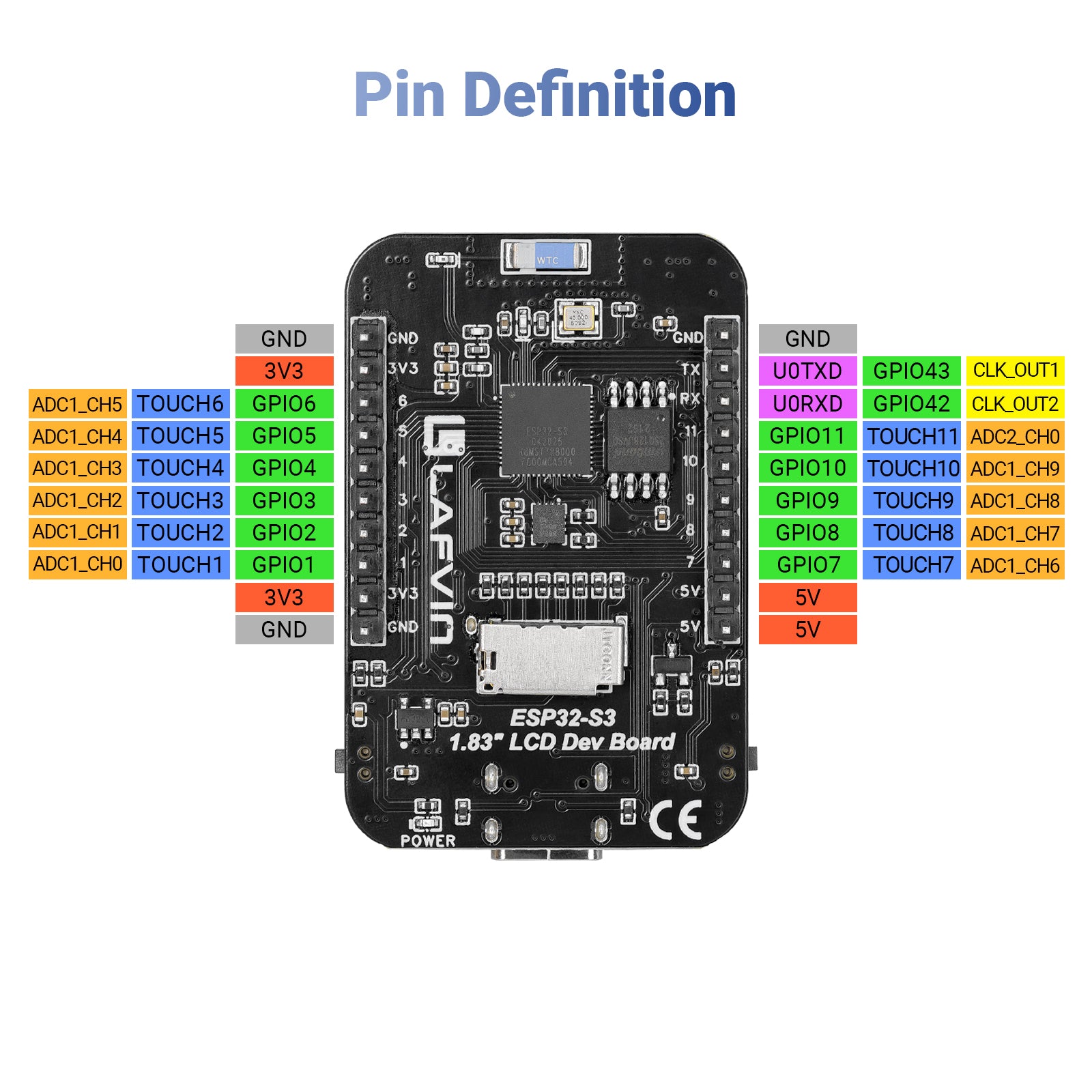

Extensive GPIO breakout for high expandability; breadboard-compatible design facilitates rapid prototyping.

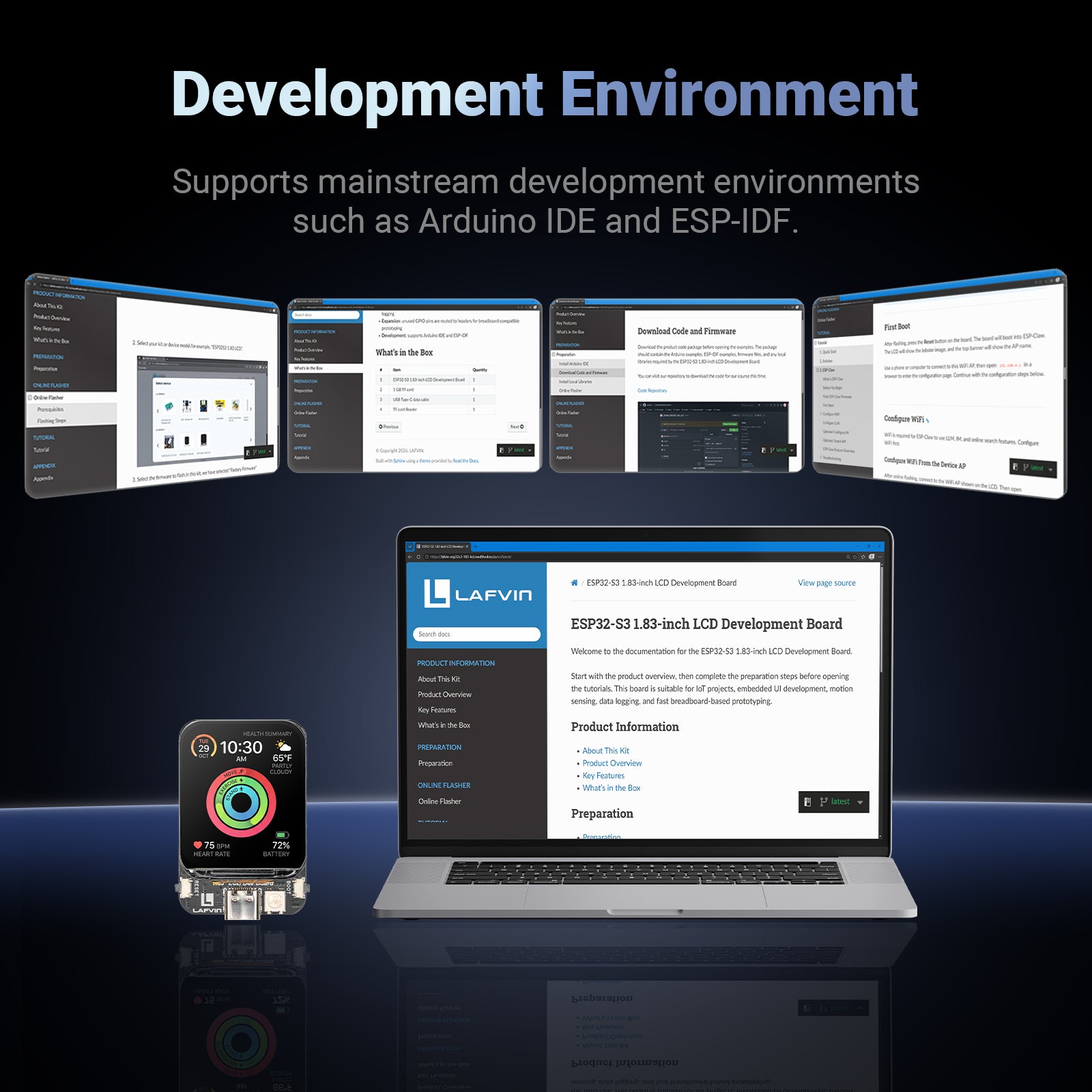

Supports mainstream development environments such as Arduino IDE and ESP-IDF.

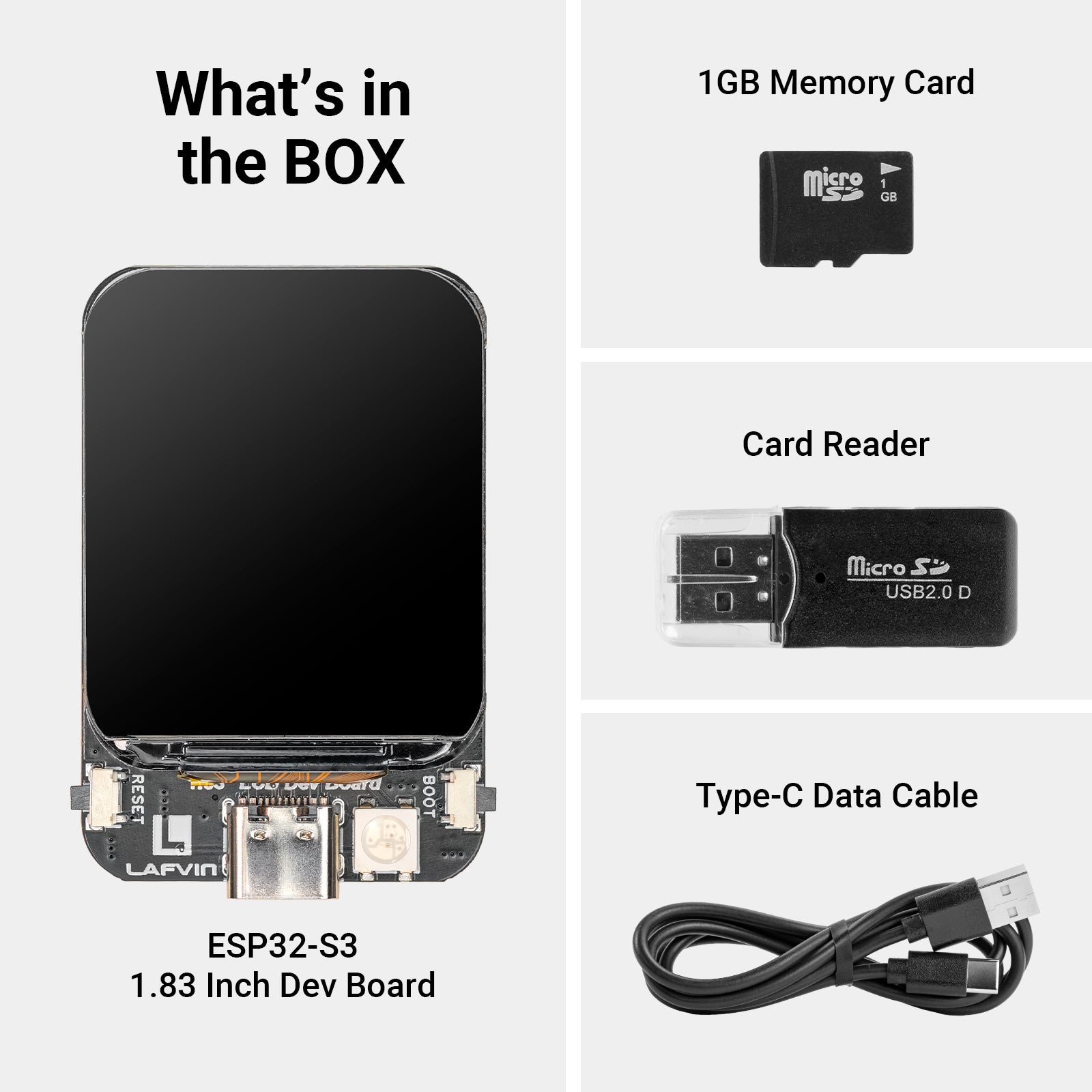

Target Audience: Whether you are learning ESP32 development, creating innovative electronic projects, or developing smart terminal products, this development board offers powerful and flexible hardware support, making it an ideal choice for makers, students, and embedded developers. Bill of Materials:
ESP32-S3 1.83-inch LCD Development Board x1
1GB Memory Card x1
Card Reader x1
USB Type-C Cable x1
Specifications:
• Packaging dimensions: 13.0 × 8.3 x 2.7 cm
• Product dimensions: 5 × 3.2 x 1.5 cm
• Product weight: 0.1kg
